BlochSolver is a fast 3D MRI simulator accelerated by graphics processor units (GPUs).

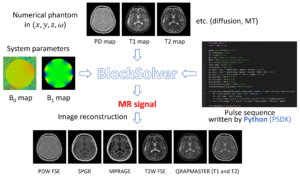

The structure of BlochSolver is shown below.

BlochSolver requires a numerical phantom, system parameter maps, and a pulse sequence.

The numerical phantom consists of a proton density map, T1 map, T2 map, diffusion coefficient map, etc.

System parameter maps consist of B0 map (inhomogeneity or resonance frequency map), B1 map (transmission and reception), gradient field map (nonlinearity).

The pulse  sequence can be developed using Python pulse sequence development kit (Python PSDK) described in this website.



The performance of BlochSolver depends on the kinds of pulse sequences. This is because the calculation time for a pulse sequence depends on the number of the total number of short pulses used for RF excitations and that of data acquisition points.



Relative performance for a 3D RF spoiled gradient echo sequence:

The calculation time of RTX 3090  was 136.570 s.



Relative performance for a 2D multislice proton density weighted FSE sequence:

The calculation time of RTX 3090 was 136.616 s.



RTX 3090: 10496 cuda cores, RTX 3080: 8704 cuda cores, RTX 2080Ti: 4352 cuda cores, GTX 1080Ti: 3584 cud cores, RTX 2070: 2560 cuda cores, GTX 1070: 1920 cuda cores, GTX 1050Ti: 768 cuda cores,  Xeon E5-2696 x 2: 36 cores, core i7 5960X: 8 cores, core i7 8750QH: 6 cores, core i7 7700HQ: 4 cores

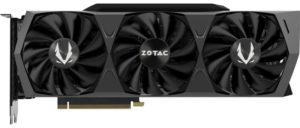

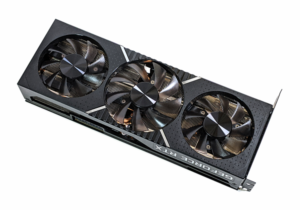

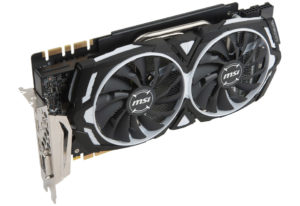

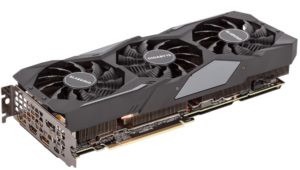

   GPU (GTX 1080Ti)    GPU (RTX 2080Ti)      GPU (RTX 3080)  GPU (RTX 3090) New!



Gaming laptop PCs are useful devices for BlochSolver:

<Original papers>

  1. Kose R, Kose K. BlochSolver: A GPU-optimized fast 3D MRI simulator for experimentally compatible pulse sequences. J Magn Reson 281:51-65 (2017).
  2. Kose R, Setoi A, Kose K. A fast GPU-optimized 3D MRI simulator for arbitrary k-space sampling. Magn Reson Med Sci, Magn Reson Med Sci 18, 208-218 (2019).
  3. Kose R, Kose K. An Accurate Dictionary Creation Method for MR Fingerprinting Using a Fast Bloch Simulator. Magn Reson Med Sci, 19(3), 247-253 (2020).
  4. Kose R, Kose K, Terada Y, Tamada D, Motosugi U. Development of a method for the Bloch image simulation of biological tissues. Magn Reson Imaging. 74, 250-257 (2020).
